Touring Disc LTD

€1.449,00
Please note that price can vary per country
Size Guide
Size
Color

This product is unavailable

With geometry that's perfect for multiple long days in the saddle and carrying a heavy load to your destination, the Touring is Fuji's classic steel pack mule. If you're looking for a reliable and comfortable workhorse that can take you cross country, across your state, or across town, the Touring is the bike for you. Available in flat-mount disc or linear-pull brake versions.
Learn More
Technical Specifications

  • Sizes

    XS (49cm), S (52cm), M (54cm), L (56cm), XL (58cm), XXL (61cm), XXXL (64cm)

    Color(s)

    Bronze

    Frame

    Reynolds 520 chromoly, rack & fender mounts, pump peg & chain hanger

    Fork

    Chromoly w/ 1 1/8" steerer, flat mount disc, low-rider water bottle and rack mounts

    Crankset

    FSA Tempo, 50/39/30T

    Bottom Bracket

    Shimano sealed cartridge bearing

    Pedals

    Alloy platform

    Front Derailleur

    Shimano Sora, 28.6mm clamp

    Rear Derailleur

    Shimano Sora

    Shifters

    Shimano Sora

    Cassette

    Shimano HG400, 11-34T, 9-speed

    Chain

    KMC X9

    Wheelset

    Alex double wall, 36h, F: Shimano Hub Dynamo, R: Shimano Deore T-675 centerlock disc hub

  • Tires

    Vittoria Randonneur Tech, 700 x 40c, 33tpi

    Brakeset

    TRP Spyre C Mechanical Disc, Flat Mount, 160mm centerlock rotors

    Brake Levers

    Shimano Sora

    Headset

    FSA, 1 1/8", sealed

    Handlebar

    Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep

    Stem

    3D-forged 6061, +/-6°

    Tape

    Selle Italia Smootape Corsa

    Saddle

    Fuji Road

    Seatpost

    6061 alloy, 27.2mm diameter

    Fenders

    Polycarbonate full coverage, stainless hardware

    Headlight

    Spanninga Axendo 40, dynamo powered

    Taillight

    Spanninga Presto RL15 XB

    Rear Carrier

    Fuji Alloy with Strap

    Weight

    13.46kg

*Specifications are subject to change without notice

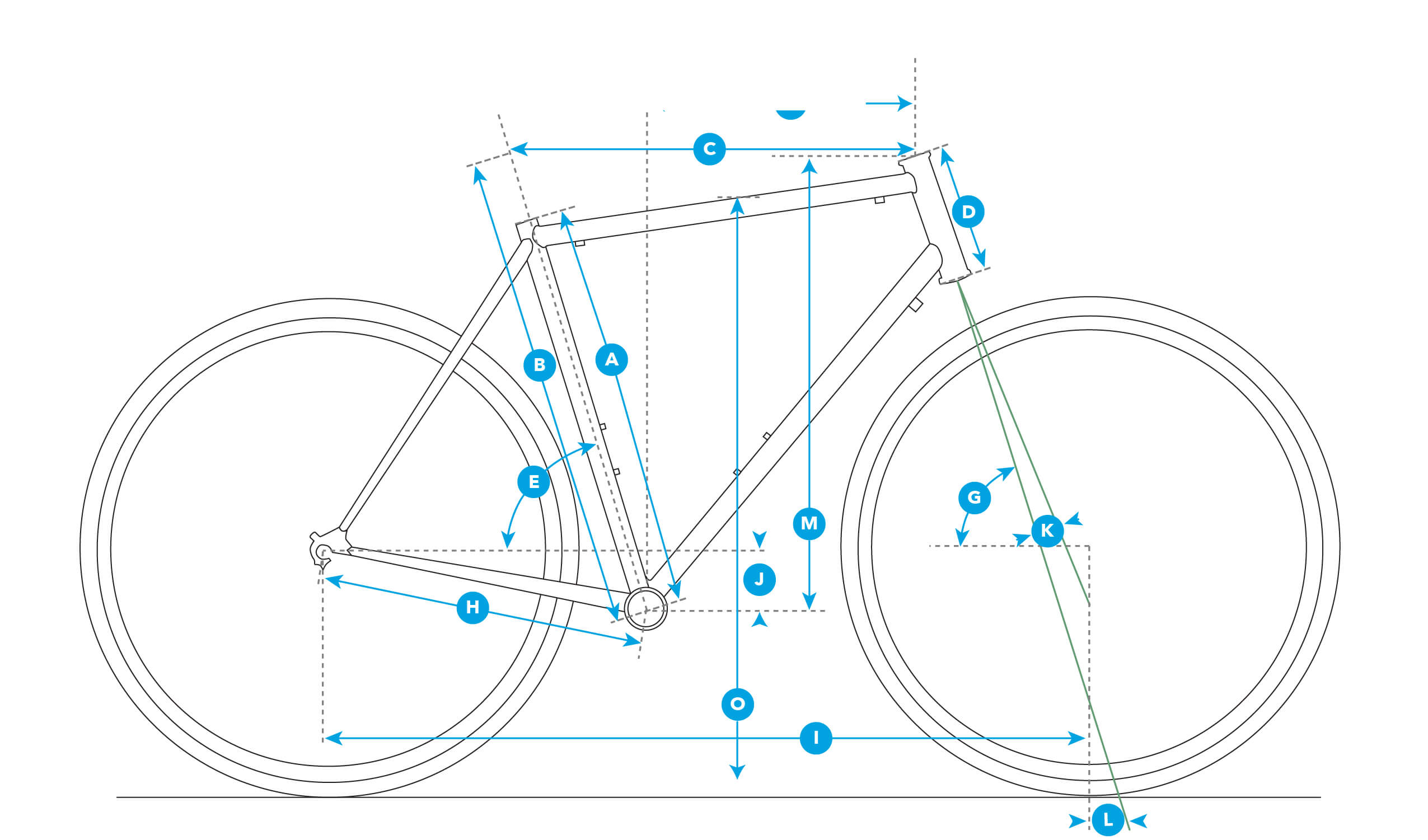

Geometry
Size XS S M L XL XXL XXXL
Bike Size 49cm 52cm 54cm 56cm 58cm 61cm 64cm
A Seat Tube C to T 450 490 510 530 550 580 610
B Seat Tube Effective 490 520 540 560 580 610 640
C Top Tube Effective 535 540 545 555 575 590 610
D Head Tube Length 110 120 140 160 180 200 220
E Seat Tube Angle / Actual 74 ° 73.5 ° 73 ° 73.5 73 ° 73 ° 72.5
G Headtube Angle 70 ° 70.5 ° 71 ° 71 ° 71 ° 71 ° 71 °
H Chainstay Length 450 450 450 450 450 450 450
I Wheelbase 1048 1048 1048 1055 1070 1086 1100
J BB Drop 78 78 78 78 78 78 78
K Fork Offset 52 52 52 52 52 52 52
L Trail 61 61 62 62 63 65 66
M Stack 549 561 582 601 620 638 657
N Reach 377 379 367 377 386 395 402
O Standover 756 781 803 824 838 862 888
Stem 80 80 100 100 110 110 110
Handlebar Width 400 420 420 440 440 460 460
Crank 170 170 170 175 175 175 175
Wheel Size 700 700 700 700 700 700 700
Seat Post Diameter 27.2 27.2 27.2 27.2 27.2 27.2 27.2
