SL-E

€4.799,00
Please note that price can vary per country
Size Guide
Size
Color: Black/ Gold

This product is unavailable

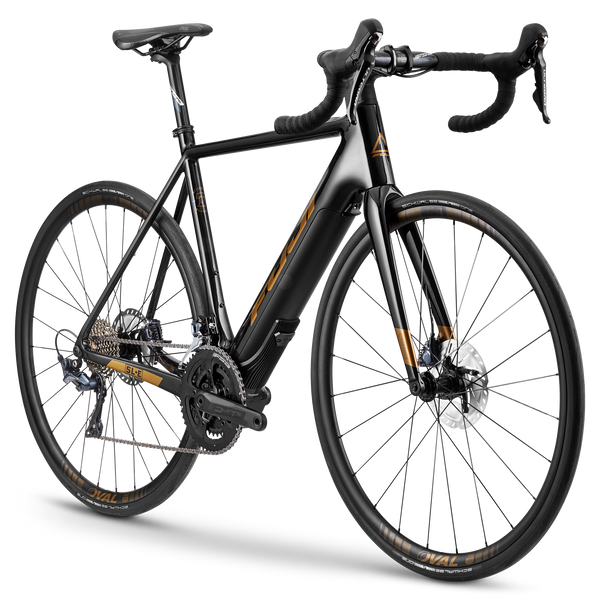

Our superlight full carbon SL just got a boost with the addition of the powerful Fazua Evation system. The smooth efficient motor turns the SL from a race day classic to an all day road warrior for every rider. Thru-axles increase the power transfer from the motor to the rear wheel, while Shimano Ultegra hydraulic disc brakes give you the stopping confidence you need. Coming equipped with 30c tires, this bike is uniquely equipped for your longest road rides.
Technical Specifications
  • Sizes

    S (51cm), M (54cm) , L (57cm) , XL (60cm)

    Color(s)

    Black

    Frame

    C10 high-modulus carbon, Fazua compatible, integrated head tube w/ 1 1/2" upper and lower, double water bottle mounts, oversized ETC chainstays, flat-mount disc system, carbon dropout w/ 12mm replaceable hanger

    Fork

    FC-440 carbon monocoque w/ tapered carbon steerer, 12mm thru-axle dropout w/ flat-mount disc system

    Crankset

    FSA CK-746-2/IS, 50/34T, for Fazua

    Front Derailleur

    Shimano Ultegra R8000, braze-on mount

    Rear Derailleur

    Shimano Ultegra R8000 GS

    Shifters

    Shimano Ultegra Dual Control Hydraulic, 11-speed

    Cassette

    Shimano 105 R7000, 11-32T

    Chain

    Shimano HG601-11, HyperGlide-X, 11-speed

    Wheelset

    Oval Concepts 524 Disc, centerlock hubs, 100x12mm & 142x12mm thru axles, 700c 24/28H rims

  • Tires

    Schwalbe One Performance, 28-622, Addix compound, Race Guard, 67tpi

    Brakeset

    Shimano Ultegra R8020 Hydraulic, 160/160mm rotors

    Brake Levers

    Shimano Ultegra Hydraulic

    Headset

    FSA NO.55R / 1.5"-1.5" / SMR system / ACB bearings

    Handlebar

    FSA Energy, 7050 alloy, 31.8mm clamp, 125mm drop, 80mm reach, width: S: 400mm / M: 420mm / L-XL: 440mm

    Stem

    FSA ST-OS-185 for SMR system, 6061 alloy, 31.8mm clamp, -6°, length: S: 90mm / M: 100mm / L-XL: 110mm

    Grips

    Anti-slip silicone

    Saddle

    Oval Concepts 300, steel rail

    Seatpost

    FSA Energy, 6066 alloy micro adjust, 27.2mm diameter, 350mm length

    Drive Unit

    Fazua Evation mid-motor, 250W rated power, 55Nm of torque, 25km/h maximum assist

    Battery

    Fazua Evation 250Wh with charger

    Display

    Fazua Evation Satellite remote

Geometry
Size S M L XL
Bike size 51cm 54cm 57cm 60cm
A Seat Tube C to T 510 540 570 600
B Seat Tube Effective
C Top Tube Effective 525.3 545 565 586
D Head Tube Length 130 150 170 200
E Seat Tube Angle / Actual 74 73.7 73.4 73
G Headtube Angle 71.5 72.5 72.8 73.5
H Chainstay Length 412 412 412 412
I Wheelbase 980.7 989.7 1003.5 1013.8
J BB Drop 69 69 69 69
K Fork Offset 45 45 45 45
L Trail
M Stack 531.7 554.2 574.3 605.5
N Reach 372.6 383 393.7 401.8
O Standover
Stem 90 100 110 110
Handlebar Width 400 420 440 440
Crank 170 170 175 175
Wheel Size 700c 700c 700c 700c
Seat Post Diameter 27.2 27.2 27.2 27.2
