Nevada 29 3.0 LTD

€799,00
Please note that price can vary per country
Size Guide
Size
Color: Orange

This product is unavailable

A staple in the Fuji mountain-bike lineup, the Nevada combines 29" or 27.5" wheels with a great hardtail frame and solid components to take your off-road adventures to the next level.
Learn More
Technical Specifications

  • Sizes

    M, L, XL, XXL

    Color(s)

    Orange, Satin Black

    Frame

    Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle

    Fork

    SR Suntour SF19-XCT30-HLO-DS-29, 100mm

    Crankset

    Shimano Altus, 40/30/22T

    Bottom Bracket

    Sealed cartridge bearing

    Pedals

    Resin platform

    Front Derailleur

    Shimano Altus

    Rear Derailleur

    Shimano Alivio

    Shifters

    Shimano Altus, Rapid Fire, 3 x 9-speed

    Cassette

    Shimano HG201-9, 11-36T

  • Chain

    KMC Z9

    Wheelset

    WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hub, black spokes

    Tires

    WTB Ranger Comp, 29" x 2.25", 27tpi

    Brakeset

    Tektro M275, 180/160mm rotors

    Brake Levers

    Tektro M275

    Headset

    1 1/8" sealed bearings

    Handlebar

    Fuji flat bar, alloy, 710mm

    Stem

    Fuji, forged aluminum, +/-6°

    Grips

    Fuji Performance Grip

    Saddle

    Fuji Performance Saddle

    Seat post

    Fuji, alloy, 30.9mm

    Weight

    14.96 kg / 32.95 lbs

*Specifications are subject to change without notice

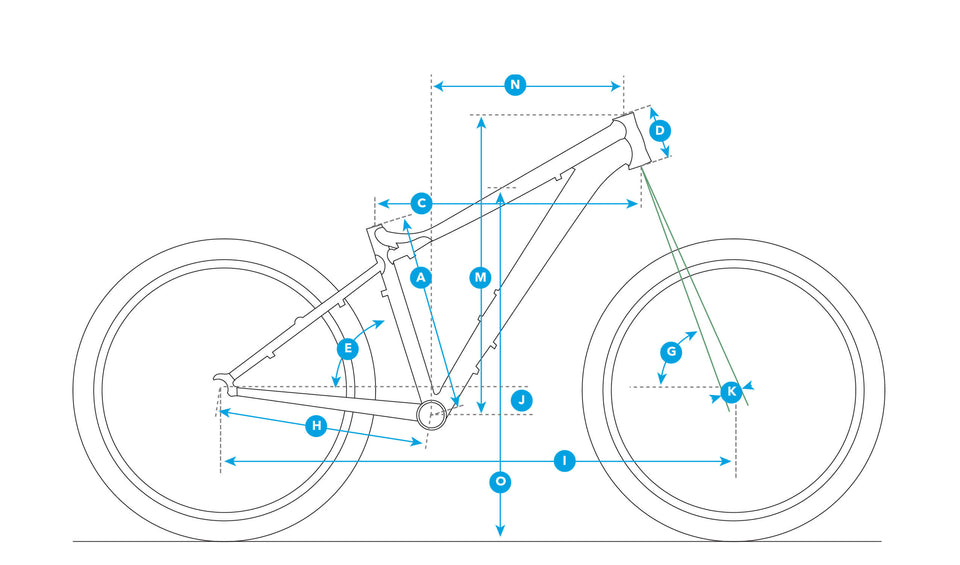

Geometry
Size M L XL XXL
Bike Size 17" 19" 21" 23"
A Seat Tube, Center To Top 420 470 520 560
C Top Tube, Effective 611 636 653 672
D Head Tube Length 105 110 120 130
E Seat Tube Angle 73° 73° 73° 73°
G Head Tube Angle 69° 69° 69° 69°
H Chainstay Length 450 450 450 450
I Wheelbase 1134 1160 1177.5 1197
J Bottom Bracket Drop 55 55 55 55
K Fork Offset 46 46 46 46
M Stack 621 625.5 635 644
N Reach 421 445 459 475
O Standover 809 834.5 862 886
Stem 45 45 60 60
Handlebar Width 710 710 710 710
Crank 175 175 175 175
Wheel Size 29" 29" 29" 29"
Seat Post Diameter 30.9 30.9 30.9 30.9
