Jari 1.1 Frameset

€799,00
Please note that price can vary per country
Size Guide
Size
Color: Matte Black

This product is unavailable

Performance, utility, and versatility - the Jari delivers them all. Designed to take on gravel races, light touring, bike packing or pretty much whatever you can throw at it. The Jari is a chameleon that seamlessly changes into whatever you need it to be. Long, slack geometry provides a stable and confidence-inspiring ride no matter what the terrain, allowing you to comfortably grind gravel or tackle tarmac all day long.
Technical Specifications
  • Sizes

    XS (48cm), S (52cm), M (54cm), L (55.5cm), XL (57.5cm), XXL (60cm)

    Color(s)

    Khaki Green

  • Frame

    A6-SL Super-Butted Aluminum, tapered head tube, T47 BB, 142x12mm thru-axle

    Fork

    C10 carbon monocoque, tapered carbon steerer, 100x12mm thru-axle

    Headset

    FSA, 1 1/8" upper - 1 1/2" lower, integrated

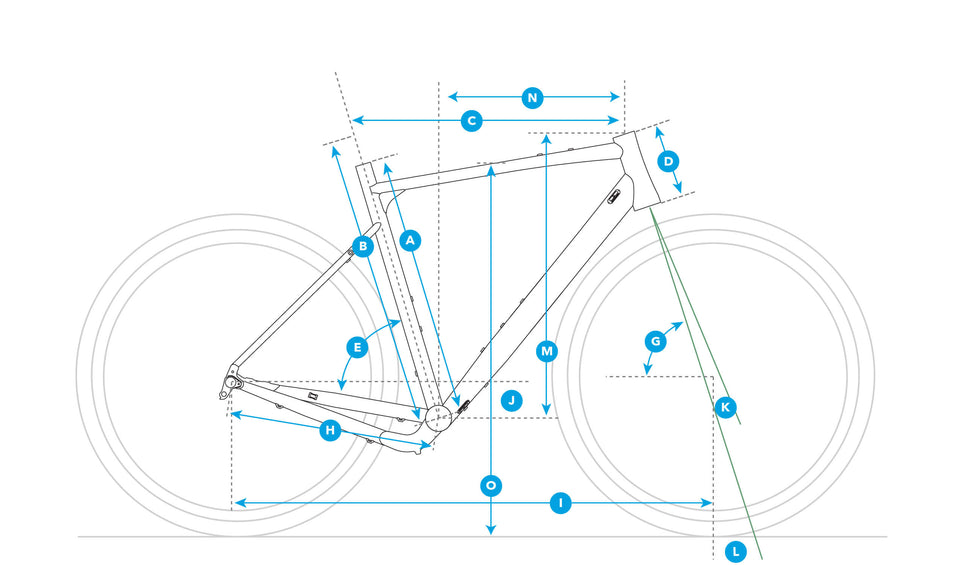

Geometry
Size XXS XS S M L XL XXL
Bike Size 46cm 48cm 52cm 54cm 55.5cm 57.5cm 60cm
A Seat Tube C to T 460 480 520 540 555 575 600
B Seat Tube Effective 542 567 590 608 624 644 664
C Top Tube Effective 505 510 530 550 565 580 595
D Head Tube Length 100 120 140 155 170 190 210
E Seat Tube Angle / Actual 74.5 75 74 73 73 73 73
G Headtube Angle 69.5 70.5 70.5 71 71.5 71.5 71.5
H Chainstay Length 430 430 430 430 430 430 430
I Wheelbase 1005 1007 1018 1023 1034 1049 1069
J BB Drop 69 72 72 70 70 70 70
K Fork Offset 48 48 48 48 48 48 48
L Trail 73 73 70 67 64 64 64
M Stack 522 548 560 581 592 616 635
N Reach 360 364 367 372 382 392 406
O Standover 738 767 790 804 824 841 865
Stem 80 80 80 90 90 110 110
Handlebar Width 400 400 400 420 420 440 460
Crank 165 170 170 172.5 172.5 175 175
Wheel Size 700 700 700 700 700 700 700
Seat Post Diameter 27.2 27.2 27.2 27.2 27.2 27.2 27.2
