Rakan 29 1.7

€2.099,00
Please note that price can vary per country
Size Guide
Size
Color

This product is unavailable

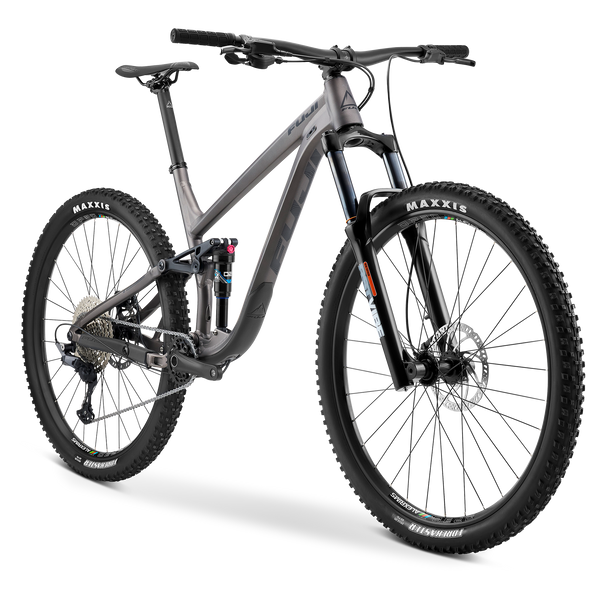

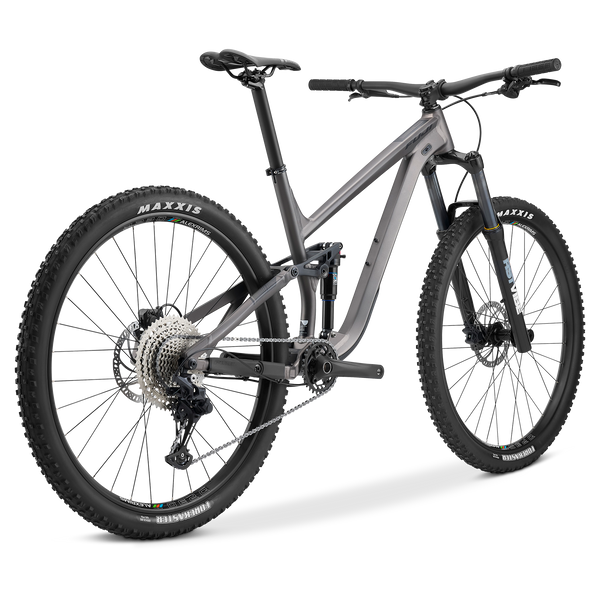

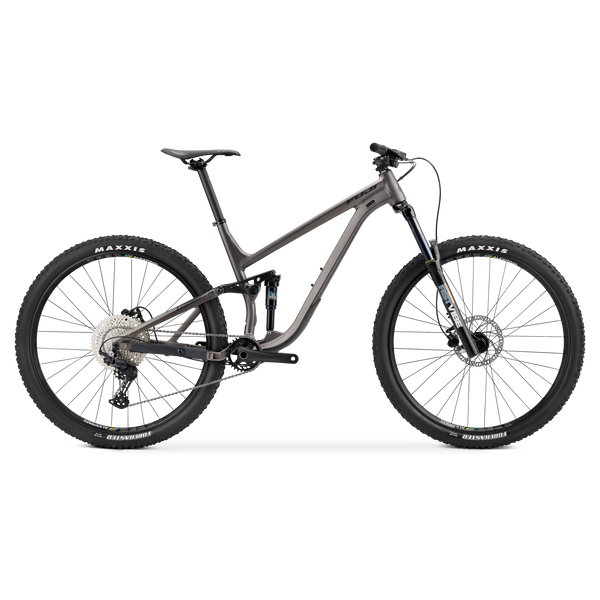

The Rakan might be the most efficient pedaling trail bike on the market, with 120mm of MLink® Suspension Design technology, modern geometry and 29-inch wheels make it the obvious choice if you're looking for a do-it-all mountain bike.

Technical Specifications
  • Sizes

    S, M, L, XL

    Color(s)

    Matte Smoked Silver

    Frame

    Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, UDH, 120mm

    Fork

    RST Vibe 110-15 Air, tapered alloy steerer, Boost 110x15mm, 140mm travel

    Rear Shock

    X-Fusion O2 Pro R

    Crankset

    Prowheel, 30T

    Bottom Bracket

    External cup, threaded

    Rear Derailleur

    Shimano Deore, shadow plus

    Shifters

    Shimano Deore, 1 x 11-speed

    Cassette

    Sunrace, 10-50T

    Chain

    KMC X11

  • Wheelset

    Alex DP30 tubeless ready 32H, Formula DC-511 front hub, DC-3248 rear hub, stainless spokes

    Tires

    Maxxis Forecaster, 29" x 2.35", 60tpi

    Brakeset

    Tektro M275, 180mm rotors

    Brake Levers

    Tektro M275

    Headset

    FSA 1 1/8" - 1.5", sealed cartridge bearings

    Handlebar

    TranzX Riser Bar, alloy, 20mm rise, 780mm

    Stem

    TranzX, alloy, +0° rise

    Grips

    WTB Waffel, Lock on

    Saddle

    Selle San Marco Monza Full Fit Start Up

    Seat post

    Fuji, alloy, 31.6mm

    Weight

    TBD

*Specifications are subject to change without notice
Geometry
Size S M L XL
Bike Size 15" 17" 19" 21"
A Seat Tube, Center To Top 380 420 458 495
C Top Tube, Effective 590 618 646 668.5
D Head Tube Length 100 110 120 130
E Seat Tube Angle 77° 76.5° 76° 76°
G Head Tube Angle 65° 65° 65° 65°
H Chainstay Length 431 431 431 431
I Wheelbase 1194.9 1219 1243.3 1267.5
J Bottom Bracket Drop 32 32 32 32
K Fork Offset 42 42 42 42
M Stack 607.9 616.9 626 635
N Reach 450 470 490 510
O Standover 748.3 766.5 762.4 783
Stem 40 40 40 40
Handlebar Width 780 780 780 780
Crank 170 170 170 170
Wheel Size 29" 29" 29" 29"
Seat Post Diameter 31.6 31.6 31.6 31.6
