Absolute 1.7

€869,00
Please note that price can vary per country
Size Guide
Size
Color
Known for versatility, the Absolute's geometry strikes a balance between speed and comfort, making it ideal for the fitness-minded rider, or the urbanite looking to ride to work or run errands.
Learn More
Technical Specifications

  • Sizes

    S (15"), M (17"), L (19"), XL (21"), XXL (23")

    Color(s)

    Cement

    Frame

    Fuji A2-SL custom butted alloy

    Fork

    Fuji A1 alloy

    Crankset

    Shimano Altus, 46/30T OR Prowheel RPP

    Bottom Bracket

    Shimano sealed cartridge bearing

    Pedals

    Resin platform

    Front Derailleur

    Shimano Acera OR microSHIFT R9

    Rear Derailleur

    Shimano Alivio shadow OR microSHIFT R9

    Shifters

    Shimano Altus, 2 x 9-speed OR microSHIFT R9 Xpress Shift

    Cassette

    Shimano Acera, 11-36T OR micrSHIFT CS-H092

  • Chain

    KMC X9

    Wheelset

    Alex double wall rims 32h, stainless spokes

    Tires

    Kenda Tendril, 700 x 38c, K-shield flat protection OR Goodyear Transit Tour, 700 x 40c

    Brakeset

    Tektro HD-275, hydraulic disc, 160mm rotors

    Brake Levers

    Tektro HD-275, hydraulic disc

    Headset

    1-1/8" semi-integrated

    Handlebar

    Alloy, 18mm rise, 6° backsweep

    Stem

    3D-forged alloy, 17°, 31.8mm

    Grips

    Velo comfort sport

    Saddle

    Selle Royal Vivo Ergo

    Seatpost

    Alloy, 27.2mm

*Specifications are subject to change without notice

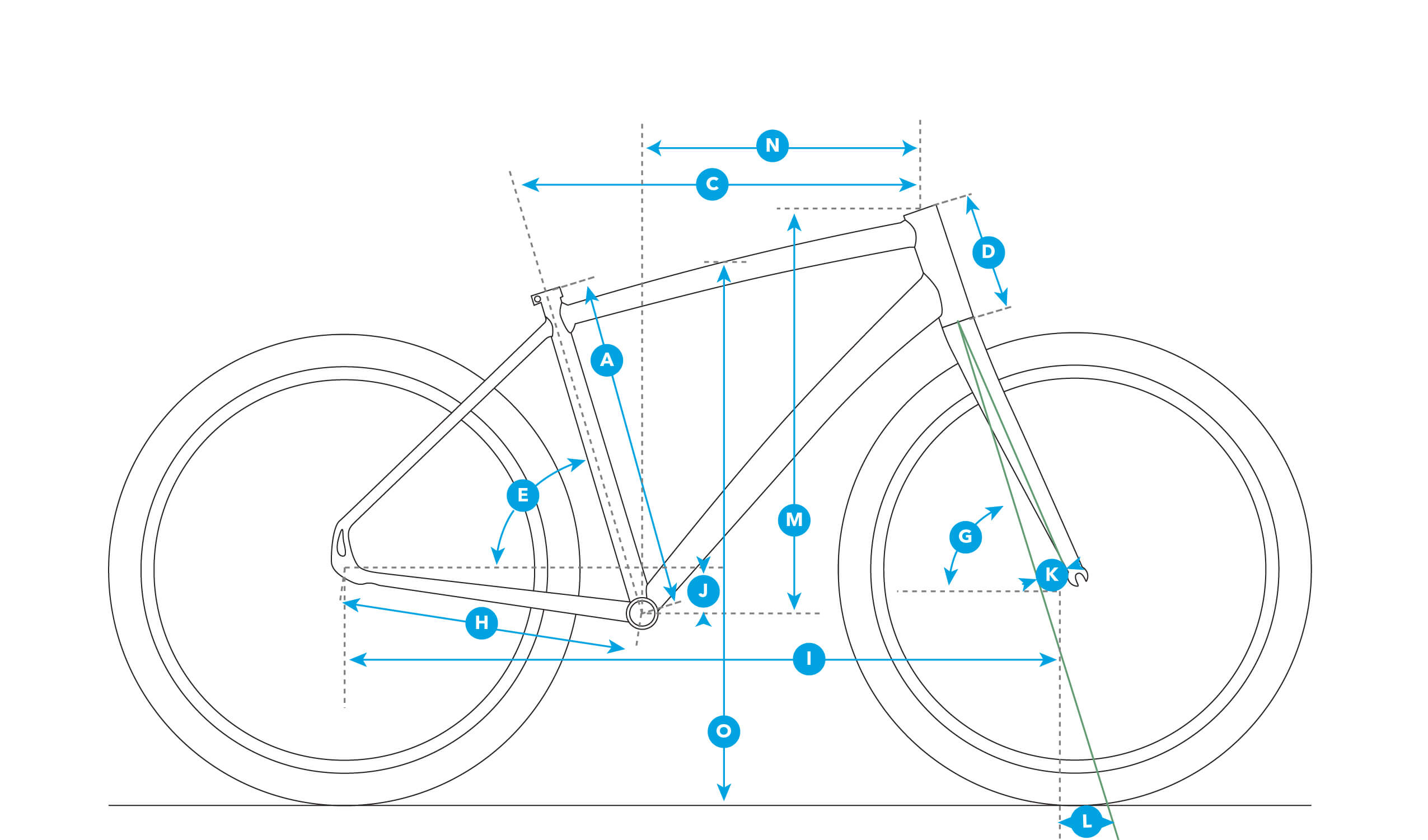

Geometry
Size S M L XL XXL
Bike Size 15" 17" 19" 21" 23"
A Seat Tube, Center To Top 381 432 483 533 584
C Top Tube, Effective 533 549 575 600 625
D Head Tube Length 120 145 170 190 220
E Seat Tube Angle 75° 74° 73° 73° 73°
G Head Tube Angle 69° 70° 71° 71° 71°
H Chainstay Length 440 440 440 440 440
I Wheelbase 1055 1055 1060 1060 1112
J Bottom Bracket Drop 60 60 60 60 60
K Fork Offset 45 45 45 45 45
M Stack 528 555 583 601 630
N Reach 392 390 395 416 432
O Standover 728 765 802 835 873
Stem 80 80 100 100 100
Handlebar Width 620 620 680 680 680
Crank 170 170 175 175 175
Wheel Size 700c 700c 700c 700c 700c
Seat Post Diameter 27.2 27.2 27.2 27.2 27.2
