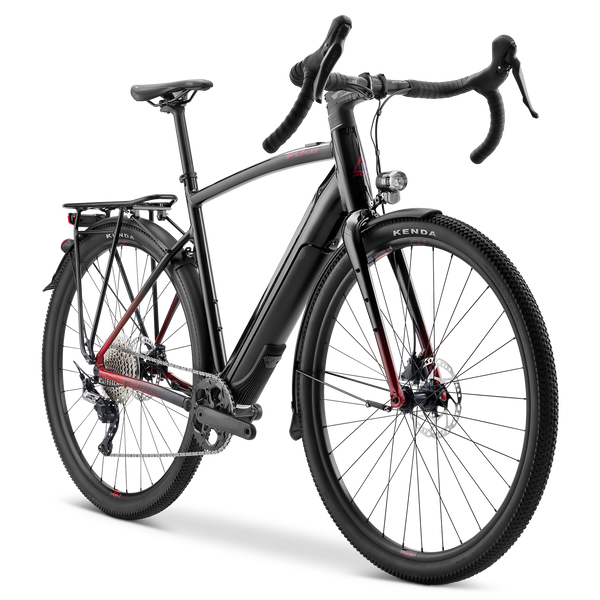

E-Jari EQP

€4.299,00
Please note that price can vary per country
Size Guide
Size
Color: Black/ red gradient

This product is unavailable

The gravel soul of the Fuji Jari meets the ease and joy of an eBike! We coupled our popular gravel model with the powerful Fazua Evation system now with Black Pepper Performance software which offers increased performance, efficiency, and power for a more natural ride experience on and off road. The E-Jari features many of your favorite aspects of the original Jari including additional water bottle mounts, a rack mount, and 45c gravel tires to allow you to go wherever the road points you.
Technical Specifications
  • Sizes

    S (49cm), M (53cm) , L (56cm) , XL (59cm)

    Color(s)

    Black / red gradient

    Frame

    A6-SL Super-Butted Aluminum, internal cable routing, , Fazua compatible, integrated head tube w/ 1 1/2" upper and lower, double water bottle mounts, flat-mount disc system, dropout w/ 12mm replaceable hanger

    Fork

    FC-440 Cross carbon monocoque, 12mm thru-axle w/ flat-mount disc tabs, tapered steerer, rack/water bottle mounts

    Crankset

    FSA CK-746-1/IS, 42T Megatooth, for Fazua

    Rear Derailleur

    Shimano GRX RX812 GS

    Shifters

    Shimano GRX Dual Control Hydraulic, 11-speed

    Cassette

    Shimano HG-5100-11, 11-42T

    Chain

    Shimano HG601-11, HyperGlide-X, 11-speed

    Wheelset

    WTB HTZ i23 TCS 2.0, 32/32h, 12mm thru-axle cartridge bearing hubs for e-gravel

    Tires

    WTB Riddler, 700x45c, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead, Tan walls

    Brakeset

    Shimano GRX Hydraulic, 160/160mm rotors

    Brake Levers

    Shimano GRX Hydraulic

  • Headset

    FSA NO.55R / 1.5"-1.5" / SMR system / ACB bearings

    Handlebar

    Fuji, 6061 alloy, 31.8mm clamp, 125mm drop, 25° flare, 4° sweep, width: S: 400mm / M: 420mm / L-XL: 440mm

    Stem

    FSA ST-OS-185 for SMR system, 6061 alloy, 31.8mm clamp, -6°, length: S: 90mm / M: 100mm / L-XL: 110mm

    Grips

    Anti-slip silicone

    Saddle

    Oval Concepts 300, steel rail

    Seatpost

    FSA Energy, 6066 alloy micro adjust, 27.2mm diameter, 350mm length

    Fenders

    Bike man Composite, stainless hardware

    Headlight

    AXA Blueline 50, 50 Lux, steady

    Taillight

    AXA Retro

    Rear Carrier

    Racktime Eco 2

    Drive Unit

    Fazua Evation mid-motor, 250W rated power, 55Nm of torque, 25km/h maximum assist

    Battery

    Fazua Evation 250Wh with charger

    Display

    Fazua Evation Satellite remote

Geometry
Size S M L XL
Bike size 49cm 53cm 56cm 59cm
A Seat Tube C to T 490 530 560 590
B Seat Tube Effective
C Top Tube Effective 530 550 575 590
D Head Tube Length 125 150 175 200
E Seat Tube Angle / Actual 74.5 74 73 73
G Headtube Angle 70.5 71 71.5 72
H Chainstay Length 432 432 432 432
I Wheelbase 1023.8 1035.2 1044.9 1055
J BB Drop 72 72 72 72
K Fork Offset 48 48 48 48
L Trail
M Stack 552.7 578.3 604 629.7
N Reach 376.7 384 390.4 397.5
O Standover
Stem 90 100 110 110
Handlebar Width 400 420 440 440
Crank 170 170 175 175
Wheel Size 700c 700c 700c 700c
Seat Post Diameter 30.9 30.9 30.9 30.9
