SLM 29 2.5

€2.299,00
Please note that price can vary per country
Size Guide
Size
Color

This product is unavailable

With a super light carbon frame that allows it to be simultaneously stiff and smooth on the trail, the SLM is at the pinnacle of hardtail XC mountain bikes. With a long, low and aggressive geometry, the SLM is ready to play on World Cup tracks or at your local XC series.
Learn More
Technical Specifications

  • Sizes

    S, M, L, XL

    Color(s)

    Pearl Blue

    Frame

    C10 super-light high-modulus carbon, BB92, Boost 148x12mm

    Fork

    RockShox Recon Gold RL R 29 Solo Air, remote lockout, tapered alloy steerer, Boost 110x15mm, 100mm

    Crankset

    Shimano Deore, 32T

    Bottom Bracket

    Shimano BB92, press fit

    Rear Derailleur

    Shimano Deore XT, shadow plus

    Shifters

    Shimano Deore, 1 x 12-speed

    Cassette

    Shimano Deore, 10-51T

    Chain

    Shimano Deore

  • Wheelset

    WTB ST i25 TCS 2.0 29" 32H rims, Shimano MT400 front hub, MT410 rear hub, DT Swiss Industry spokes

    Tires

    Maxxis Ikon, 29" x 2.2", 60tpi, folding

    Brakeset

    Shimano MT500, 180/160mm rotors

    Brake Levers

    Shimano MT501

    Headset

    FSA 1 1/8" - 1.5", sealed cartridge bearings

    Handlebar

    Race Face Ride Flat Bar, 710mm

    Stem

    Race Face Ride, 6° rise

    Grips

    Fuji Performance Grip Lock On

    Saddle

    Selle Italia X1

    Seat post

    Race Face Ride XC, 31.6mm

*Specifications are subject to change without notice

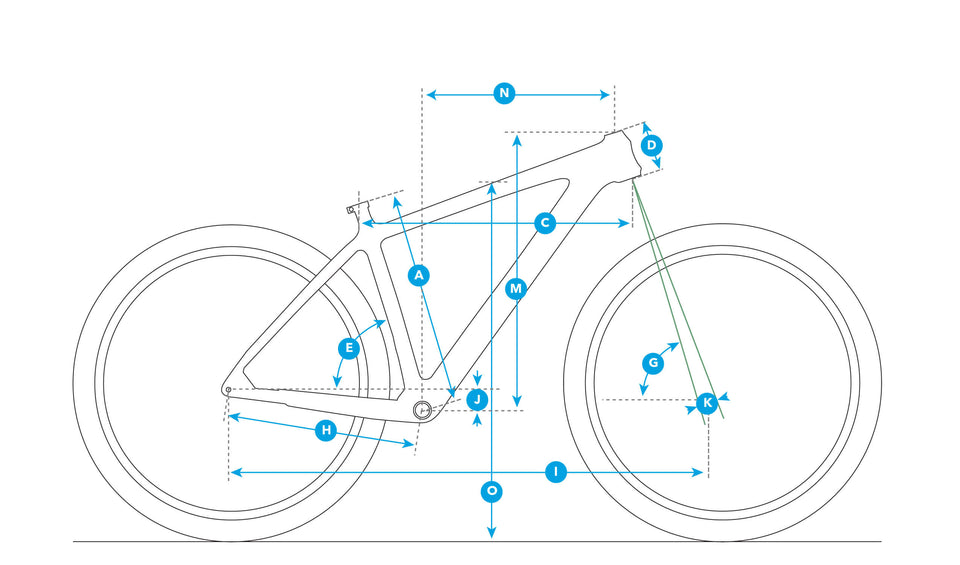

Geometry
Size S M L XL
Bike Size 15.5" 17.5" 19" 21"
A Seat Tube, C To T 395 440 483 533
C Top Tube, Effective 585 610 630 650
D Head Tube Length 100 105 115 130
E Seat Tube Angle 72.5° 72.5° 72.5° 72.5°
G Head Tube Angle 69.5° 69.5° 69.5° 69.5°
H Chainstay Length 435 435 435 435
I Wheelbase 1083.7 1109.2 1129.5 1150.3
J BB Drop 60 60 60 60
K Fork Offset 51 51 51 51
M Stack 610.6 615.3 624.7 638.7
N Reach 392.5 414.6 433 448.6
O Standover 744.1 769.9 801.1 839.5
Stem 60 60 60 70
Handlebar Width 710 710 710 710
Crank 170 175 175 175
Wheel Size 29" 29" 29" 29"
Seat Post Diameter 31.6 31.6 31.6 31.6
