Sportif 1.1 Disc

€1.749,00
Please note that price can vary per country
Size Guide
Size
Color

This product is unavailable

The Sportif bucks all the time honored reasons not to ride a bike. It’s comfortable, it’s sporty, it’s well-equipped, and quite a lot of bike for the price. It’s everything you need to get out the door and go. Taking geometry cues from our top-level endurance bike, the Gran Fondo, the Sportif's longer wheelbase and taller headtube position the rider efficiently to reduce arm fatigue and back strain while on the road.

Learn More
Technical Specifications

  • Sizes

    XXS (46cm), XS (49cm), S (52cm), M (54cm), L (56cm), XL (58cm), XXL (61cm)

    Color(s)

    Pearl Black

    Frame

    A2-SL alloy, tapered head tube, 68mm english threaded BB

    Fork

    C10 carbon monocoque, tapered carbon steerer, 100x12mm thru-axle

    Crankset

    FSA Gossamer 50/34T

    Bottom Bracket

    FSA Mega Exo

    Front Derailleur

    Shimano 105

    Rear Derailleur

    Shimano 105

    Shifters

    Shimano 105 Dual Control, 2 x 11-speed

    Cassette

    Shimano 105, 11-34T

    Chain

    KMC X11

  • Wheelset

    Oval Concepts 324 Disc, 24/28H

    Tires

    Vittoria Zaffiro V, 700 x 30c, 26tpi

    Tubes

    700 x 30 presta

    Brakeset

    TRP HY/RD, cable-hydraulic disc, 160/140mm rotors(46/49cm)

    Brake Levers

    Shimano 105

    Headset

    FSA, 1 1/8” upper - 1 1/2” lower, integrated

    Handlebar

    Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep

    Stem

    Oval Concepts 313, 3D-forged 6061, +/-6°

    Tape

    Selle Italia Smootape Corsa

    Saddle

    Selle Italia X3 Boost

    Seatpost

    Oval Concepts 300, alloy, 27.2mm

*Specifications are subject to change without notice

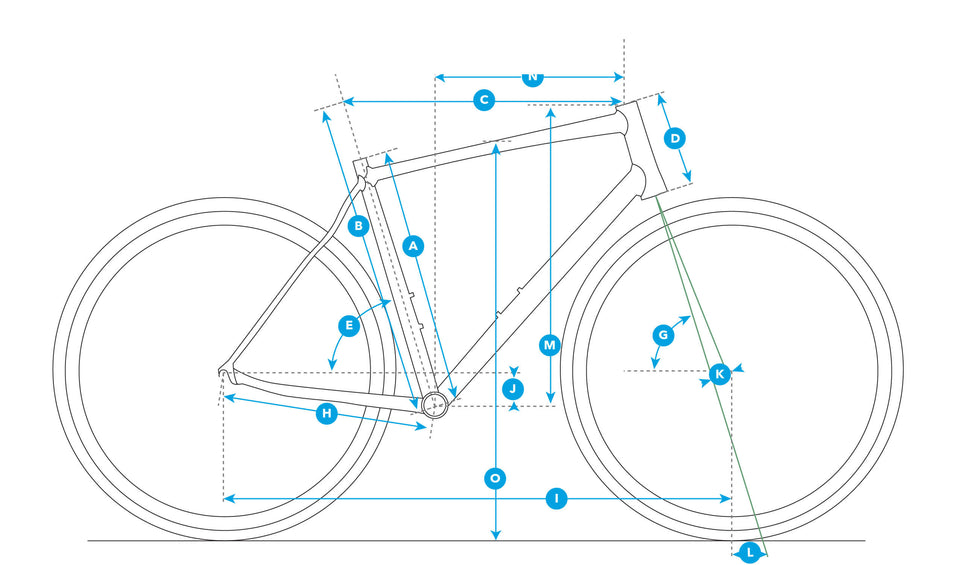

Geometry
Size XXS XS S M L XL XXL
A Seat Tube C to T 420 450 480 500 520 540 570
B Seat Tube Effective 460 490 520 540 560 580 610
C Top Tube Effective 505 515 530 545 560 580 600
D Head Tube Length 100 125 150 170 190 215 235
E Seat Tube Angle / Actual 75 74.5 73.8 73.5 73 73 73
G Headtube Angle 71 71.5 71.5 73 73 73 73
H Chainstay Length 415 415 415 415 415 415 415
I Wheelbase 984 986 995 984 993 1013 1033
J BB Drop 69 69 69 69 69 69 69
K Fork Offset 52 52 52 43 43 43 43
L Trail 63 60 60 60 60 60 60
M Stack 505 531 554 581 601 625 644
N Reach 370 368 369 373 376 389 403
O Standover 712 737 762 784 804 825 849
Stem 80 80 80 90 90 110 110
Handlebar Width 380 400 400 420 420 440 440
Crank 170 170 170 170 175 175 175
Wheel Size 700 700 700 700 700 700 700
Seat Post Diameter 27.2 27.2 27.2 27.2 27.2 27.2 27.2
